Tuesday, December 20, 2011

Links updated

old links deleted - a couple of new links added...scroll down. check em out !

Monday, December 12, 2011

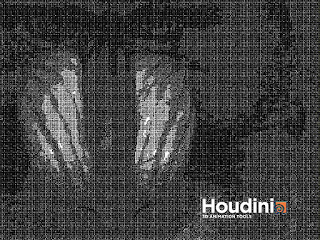

Halftone SOP

Time to dip my toes back in the water of  Houdini.here i just look at an image in cops with pic or picni and colour my template points accordingly, then copy a group of 4 discs to each point.

template points

I then use a switch with a stamp expression to swap between the circular disk configurations
that give the impression of more or less black ink. Only 5 variations here.

5 disc groups for the switch SOP

 Render of discs

Wednesday, October 19, 2011

Happy Feet 2...winding up




...it seems ive just about finished working on Happy Feet2,
my first contract on a fully animated feature.

It's quite surreal. Suddenly after the last few weeks of intense 12 hour days, 7 days a week...there is nothing to do ? Currently im waiting (watching EdCatmull talking about successes and failures in the industry) for what could be my final shot , my final input to the film to be given the final review - so i can publish the particle FX and it can move down the pipe and be lit and rendered, and comped for the final output.

With out sounding pompous, I should thank a few people. Ben Simons and Rangi Sutton for giving me the chance to work on this amazing feature. Dave Brown, Rob East, Christian Hernandez and Sam Hodge for also giving me references to get a foot in this door. Thx guys.

Thanks to Jason Simmons, Goncalo Cabaca and Marc Picco for putting up with me....sometimes I slightly bash my keyboard when things dont go right :)

Definitely a learning experience, and quite a frustrating one. I'm very glad its almost over. All of the imagery I've seen in the system is looking spectacular, so definitely go and see it at the cinemas !



teaser trailer:


http://www.youtube.com/watch?v=twYq5QkNPKw

Wednesday, July 20, 2011

Sunday, June 5, 2011

Volume SOPS

checkin out the volume SOPS..

basic volume SOP
allows for scalar or vector or matrix volume
allows you to specifiy a name and value,
sampling and Tapering which i havnt seen before.

from the help:
The grid generated by the Volume SOP has constant value everywhere. It can be further manipulated on a voxel-by-voxel basis using the Volume VOP SOP or the Volume Mix SOP.

When mantra renders volumes it overrides rendering parameters according to the name of the volume. This name can be set in the Volume SOP (or later using the Name SOP). The name is also used for the default bindings to the Volume VOP SOP.
If you connect geometry to the Volume SOP’s input, it will create a bounding box around the input geometry.

Volume Analysis
from the help :

Computes analytic properties of volumes....
such as the gradient and curvature. This is done in the local space of the volume. These are a function of more than one voxel so are more difficult to compute inside a Volume VOP.

Where possible, these operations occur in place and preserve the name. If new volumes have to be created, it is attempted to ensure they gain the .x, .y, .z style suffixes in their name attribute.

an Attribute from Volume SOP transfers the curvature attribute to the geometry
Cd is simply specified in the SOP under attribute name.

Volume Blur
The Volume Blur operation blurs the voxels of a volume.

Volume Break
Cuts polygonal objects using a signed distance field volume.

Volume Compress
Volumes can be very big. The Volume Compress SOP makes it easy to make a size/quality trade off for volumetric data.

Volume Feather
The Volume Feather operation smooths the edges of the scalar data in volume primitives. This is done either in an inwards or outwards direction. It sets the maximum rate of change in the volume, clamps either increasing or decreasing transitions, and can be thought of as a one-sided blur.






Sunday, May 29, 2011

Level Sets

wikipedia

http://en.wikipedia.org/wiki/Level_set

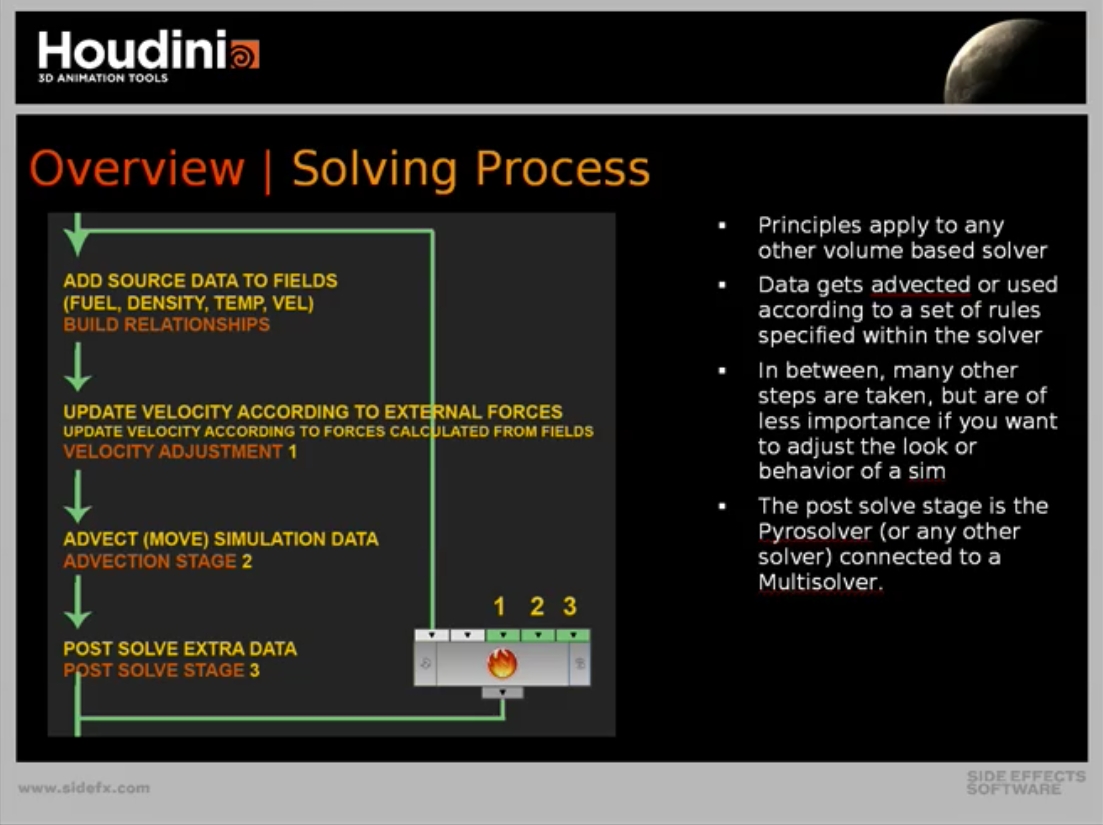

Pyro Solver




My posibbly dodgy NetBox / Node description:
--------------------------------------------------------------------------------
Create Source Mask
involves GasBuild Relationship Masks
help:
"A microsolver that builds a mask for each voxel to show the presence or absence of relationships between objects. It builds a mask field that represents where the affecting objects
intersect with the fluid."

Theres a switch which switches between 2 GBRM (Gas Build Relationship Mask) Nodes  - 1 with an index field set to source index, and the other without.

Index Field help:
"An optional index field which is set to the object id of which object was closest to the given voxel and within the bandwidth distance."

Both of these nodes use density as a reference field.

the switch has an expression as follows:
 (ch("../sourcevelmerge") != 0) || (ch("../sourcetemperaturemerge") != 0)

so the switch takes the second input (input id1) if sourcevelmerge is not 0 or
sourcetemperaturemerge is not 0.

looking at the top level of the pyro solver - we can see these parms
under advanced/solvers.
Vel merge gives us the options
(0) None,
(1) Weighted Average,
(2) Net New Source

Source Temperature merge (sourcetemperaturemerge ) gives us
the same menu options.

So an index field is added if either of these are not zero, ie the switch is activated.

What does the index field actually do ?

The Create Source Mask NetBox also has a noise node followed by a switch.
"Add Noise" is a Gas Field VOP (GFV).

help:
"...the Volume VOP runs CVEX over a set fields. The CVex Shader can be defined as a .vfl file, a SHOP or by building a CVEX VOPnet inside this node - the most straight forward approach."

We can dive inside of this VOPnet and we see...

if source > 0 then..
   if anysource != 0 then...
        multiply by aaflow noise and mix this in with Amount parm

the switch following this is driven by !ch(../dosourcenoise)
which is the toggle at the top level - sources/ noise/Add Noise (toggle)

so summing up this box basically allows noise to be mixed into the source
and allows it to be turned on or off.
--------------------------------------------------------------------------------
Apply sources
switch to apply velocities ch("../sourcevelmerge")
driven at the top level by Advanced / Sources / Apply Vel Merge

The options are
None (Null)
source_vel_wavg (GC -Gas Calculate)
source_vel_netnewsource (GC)

Apply temp looks similar - a DOPS switch - note the icon is like a GC node
to apply different temperature situations
(0) No temp change
(1) source temp weighted average
(2) source temp net new source
--------------------------------------------------------------------------------
Gas Calculate Node
from the help :
"A microsolver that performs general calculations on a pair of fields....
The Gas Calculate DOP performs many different operations on a pair of fields. It can be used to scale or blend two fields.Another use is to find the intersection or union of signed distance fields by using the Maximum or Minimum function."

2 more switches add the data for  mix in source density and fuel.

--------------------------------------------------------------------------------
Add Fuel Model
the fuel model node /asset is a Gas Combustion Node
we can jump in and we see several GCalc nodes
--------------------------------------------------------------------------------
Gas Comb help:
"A microsolver that applies a combustion model to the simulation."
 GComb is working with several fields
Temperature
Fuel
Soot
Divergence
Burn
--------------------------------------------------------------------------------
Enable Fuel Model
This is simply a switch to enable or disable Fuel, driven by
1 - ch("../docombustion")
(top level toggle - simulation/combustion/Allow Combustion)
--------------------------------------------------------------------------------
Calculate Force Scale
Constant Scale - GCalc
Build Force Scale - Gas Field VOP
Blur Force Scale - Gas Blur
--------------------------------------------------------------------------------
Gas Blur - from the help
"A microsolver that blurs fields....using an optionally time dependent blur kernel."

What does it mean by time dependent blur kernel ?
--------------------------------------------------------------------------------

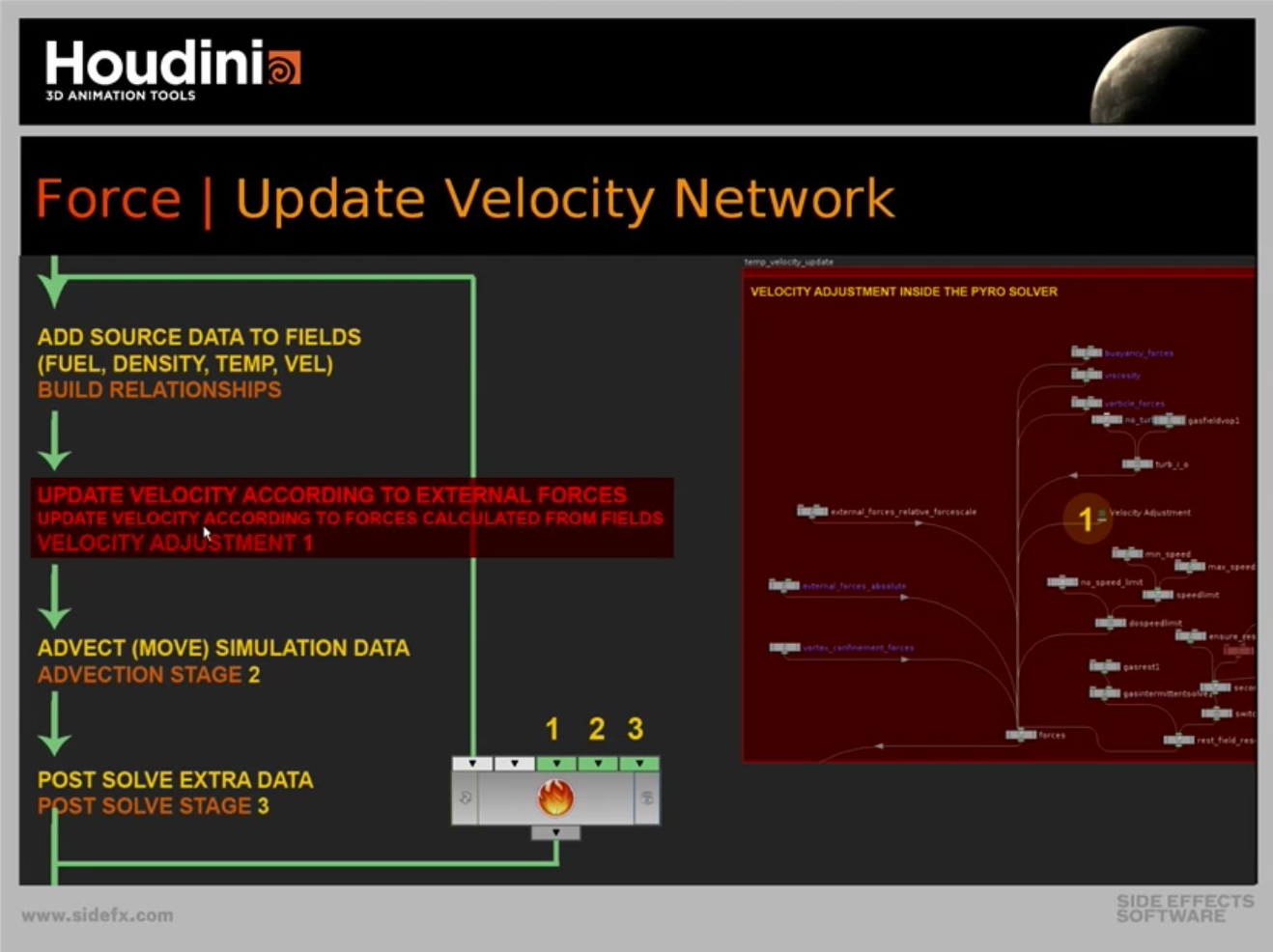

Velocity Update
this netBox contains many nodes...
Buoyancy
Gas Buoyancy Node
from the help...
"...A microsolver that calculates an adhoc buoyancy force and updates a velocity field..."

"The Gas Buoyancy DOP calculates an approximate buoyancy force dependent on the temperature field and updates a velocity field according to that force."

"Given an ambient temperature Ta, temperature T, buoyancy lift l, and buoyancy direction of B, the force will be: ((l * (T-Ta)) * B "
--------------------------------------------------------------------------------
Viscosity Node
"A microsolver that diffuses a field or point attribute...
The Gas Diffuse DOP performs a diffusion operation on the field. This will smooth out sharp discontinuities and spread out the values of the field. On vector fields, such as a velocity field, this can simulate viscosity as each voxel’s velocity will be affected by its neighbor’s values."
--------------------------------------------------------------------------------
Vorticle Forces - the Gas Vorticle Force Node
"A microsolver that applies forces to a velocity field or geometry according to vorticle geometry.
The Gas Vorticle Forces DOP applies paddlewheel like forces around each vorticle according to the vorticles attributes.
The purpose of vorticles is not to create new forces, but to maintain vorticles that naturally occur and prevent them from dissipating due to artificial viscosity.
The pscale attribute is used to determine the radius of influence of the vorticle. The up attribute is used to determine the orientation of the paddlewheel. The mag attribute is used to scale the force of the vorticle."
--------------------------------------------------------------------------------
Turbulence
has a bunch of nodes combing to form the turbulence Node (a switch)
No Turb - simply a null
switch 16 - driven by "align turb calc"
 - switches between compute turbulence alone (GFVop) and 4 nodes merged.

4 Merged Nodes:
Compute Turbulence
CreateForce Vel temp
Add Force Vel Temp to Vel
Clear Force Vel temp

Compute Turb - Gas Field VOP
We can dive into this and we see...


TimeStep is a volume VOP
looking at the globals for a Volume VOP will help us to understand this stuff.
P - position of the current Voxel
Densisty- the value of the density field art this voxel location
ix,iy,iz voxel indices - ranging from 0 to (res-1)
res[]x,y,z] - resolution of the current volume
Center - the center of the current Volume (not voxel)
Orig (in) - the bottom left corner of the current volume
Size - the size of the current volume

dPd[x,y,z] the derivative od P - these vectors store the change in P that5 occures in each step for x,y,z and voxel indices.

BB position iside the Bounding Box of the Volume - each coordinate ranges from 0-1.

Time the glo0bal time when the Vol is being evaluated
Time Inc - the timestep currently being used by the sim or playback
Frame - the current Frame being processed - NB this can be fractional.

So in this VOPnet
if amp or ramped amp of Force Scale is not very close to zero, use curl noise.
This result is multiplied by the timestep and the forceScale parm, then added to the incomuing velocity. Roughness for the curl noise can also be ramped.

i[x,y,z] as a vec is divided by res[x,y,z] as a vec to give BB (vec)

dPd[x,y,z] are individually multiplied by resX and -.5
and the lengths of these vectors are then output to a new vector which becomes the new SIZE.

They are also added together to give the origin.

This VolVop has DataBindings - they seem to link DOPS data with a Vex parameter.
here forcescale (DOPSdata )is being linked to forcescale(as a vex parameter)

and..

forceveltemp and vel DOPSdata is being 'linked to'  vel as a VEX parm
(if align turb calc is on)

--------------------------------------------------------------------------------
CreateForce Vel temp - Gas Match Field
from the help:
"A microsolver that rebuilds fields to match in size and resolution to a reference field.

The Gas Match Field DOP creates, resizes, and resamples as necessary to ensure the data matching the given name exists as a field of the same resolution and size as the reference field.

This DOP is very useful for creating adhoc fields that you need for intermediate results but don’t want to explicitly attach with the Scalar Field DOP. If you want to remove the adhoc field when done, you can zero it out. Constant fields are compressed so do not have the memory footprint of a varying field."

The reference field is vel...
--------------------------------------------------------------------------------
Add force vel temp to vel node (Gas Calculate)
destination field:        vel
source field:               forcevel_temp
source property:        friction
calc :                           add

Clear force vel temp (Gas Calculate)
destination field:        forcevel_temp
source field:               none
source property:        friction
calc :                           copy
--------------------------------------------------------------------------------
Speed Limit DOPS
doSpeedLimit is an enabling switch between :
noSpeedLimit ( a null DOP)
and minSpeed and maxSpeed - merged.
Min Speed and maxSpeed are both Gas Calculate Nodes.
--------------------------------------------------------------------------------
Build and Apply Sink
Build sink mask (Gas Build Relationship Mask) just like Source Build
merged with Remove Sink Density (Gas Calculate Node)
--------------------------------------------------------------------------------
Build Collisions
Build Collision Mask (Gas Build Collisions)
help:
"A microsolver that determines the collision field between the fluid field and any affector objects.
The Gas Build Collision Mask DOP builds a collision field that represents where affector objects overlap with the fluid field. It generates a signed distance field which is negative inside colliding objects and positive outside. It also generates a collision velocity field that stores the velocity of the affector object closest to each point."
this is merged with a apply collide temp switch which simply switches between not temp
and temp applied to colliders (Gas Calculate DOP)
--------------------------------------------------------------------------------
Create and Apply Pumps
just like sinks and Collisions above, we have a Gas Build Relationship Mask
that builds the Pump mask and Pump relationship using a index field and a reference field (density).

Also merged into pumps is a switch Solver which is controlled by the top level parm
"pVelMerge".
help:
"The Switch Solver DOP allows simulation objects to be solved by one of several solvers connected as subdata to the Switch Solver. For each object, the solver to use is determined by the value of a Switch Value data attached to it. Unlike the Blend Solver or Multiple Solver, only one of the sub-solvers is applied to each object."

...and there is also a switch (not a switch solver) between no temperature and a pump temperature (set pupmp temp) Gas which is a Calculate Node.

These are merged together to form "Pumps" - a merge node.
--------------------------------------------------------------------------------
Velocity Advect
Gas Advect DOP
help:
"A microsolver that advects fields and geometry by a velocity field.
The Gas Advect DOP evolves fields and geometry according to a specified velocity field. The fields and geometry will be moved by the velocity field for a distance proportional to the current solver timestep."
--------------------------------------------------------------------------------
temp Project Velocity
--------------------------------------------------------------------------------
Field Advect
contains many nodes...
from L to R going into the merge node...

Rest Advect (Gas Advect DOP)
Diffuse Heat (Gas Blur DOP)
Cool Gas (Gas Calculate DOP)
Advect Vorticles (Gas Advect)
Stretch Vorticles (Gas Velocity Stretch)
Compress Fields (Gas Velocity Stretch)
with enable switch below it.
Diffuse Smoke and Diffuse Fuel nodes (both Gas Blur DOPS) merged

Heat Source - itself a null hook being fed by...
1. a null - no heat
2. from source - source to heat (Gas Calculate) merged with "Age our old heat" (also Gas Calculate)
3. from burn another merge - merging  Burn to heat (Gas Calculate again) Age_our_old_Heat

Fuel Advect
(Field Advect (Gas Advect DOP) merged with Advect Fuel
(Gas Advect DOP) merged with itself again.)

Advection Stage (input 4 from Pyro's top level inputs (the 5th and final input))

Extrapolate into Collisions with a switch enabling / diabling.
(Gas Extrapolate DOP)
help:
"The Gas Extrapolate DOP extrapolates a field value along an SDF. The field’s value at an isosurface will be copied outwards along the increasing direction of the surface field."

Clamp inside Density (Gas Calculate)
merged with
Clamp inside Fuel (Gas Calculate)

The final merge is "Field Update and Advect"
--------------------------------------------------------------------------------

The Pyro Object is brought in - and all solver data is deleted from it with a delete DOP named
"rebuild solver"
NB no objects are deleted - just data.

this is piped into the objects pipe of a multi-solver
MultiSolver help:

"The Multiple Solver DOP causes a simulation object to be solved by more than one Solver at each timestep. Each solver attached to this node is applied in order to the object.
Many solver combinations will produce strange or unexpected results. For example, applying two RBD Solvers will simply make objects move twice as fast.
The most useful solver combinations are ones where each solver acts on a different piece of data on the object. For example, the RBD Solver alters the Position data of an object. This may be followed by a SOP Solver that modifies the geometry of the object based on the position, velocity, or impact information generated by the RBD Solver.
It is important that you make sure the attached solvers have different names. Solvers by default all have the name “Solver” and will thus overwrite each other. The Unique Data Name toggle on the incoming solvers can be used to ensure that the names are different."

The data going into the data pipe of the multisolver (from left to right) is:
1. the gas substep node containing all the gas advection etc mentioned above.
2. 'Data to attach' - the 5th and final input from the pryo solver top level inputs
3. Clear fields (a merge DOP described below)
--------------------------------------------------------------------------------
Clear Fields
has a switch feeding into it, switching between 3 nodes.
1. null1
2. clear hidden (Gas Calculate Node)
3. clear Static (Gas Calculate Node)

this is merged with a another Gas Calculate Node 'Clear Additional'.

at the top level of the Pyro Node under  Advanced /Clear
we have a drop down menu giving us our three choices to clear no fields, hidden fields or Static fields...and we have a 'text field' to type the names of any additional  custom fields we may want to delete.
--------------------------------------------------------------------------------
After the Multisolver we have a Drag force with a switch enabling or disabling it.

..and a null.
--------------------------------------------------------------------------------
so in summary - its not as bad as it looks...







Friday, May 27, 2011

The Gothic


FX in developed at Kanuka Studios in conjuntion with 50/50 Studios, Brisbane.

Volume Tools developed by Rangi Sutton / Kanuka Studios.
FX Shots worked by Rangi and myself.

some screen captures ! :D





















Follow by Email
